Space-Saving Single Point Load Cell for Light Industrial Use – WL-119

Space-Saving Single Point Load Cell for Light Industrial Use – WL-119

Product Description:

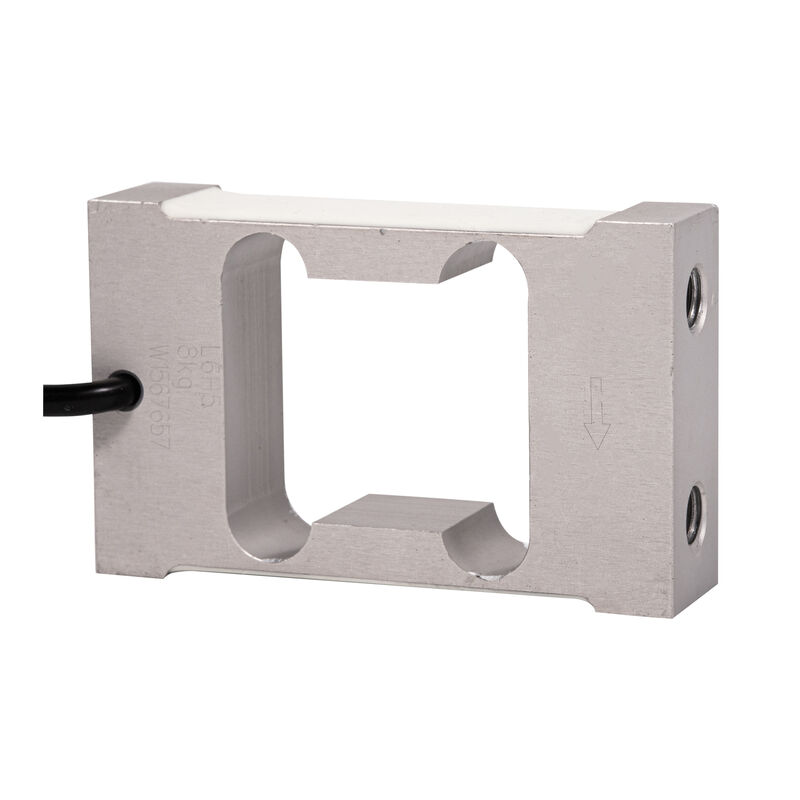

The WL-119 is a side mounted single point load cell specifically developed for applications requiring a compact footprint. Using proven strain gauge technology, this single point load cell measures loads between 1 kg and 30 kg with high precision. The single point load cell is constructed entirely from aluminum alloy, offering both strength and light weight. Designed to support dynamic weighing, the single point load cell accommodates platform sizes up to 200×200 mm. In terms of mounting, one side of the single point load cell is rigidly attached with screws, while the load applies to the other side. Three different dimensional versions of the single point load cell are available, making it suitable for a wide variety of machines. Typical installations include food packaging equipment, electronic scales, and automatic filling systems. Brans provides application-specific adjustments for every single point load cell to meet customer requirements. With its compact structure and reliable output, this single point load cell is a smart choice for system integrators. Each single point load cell is validated for dynamic performance before delivery.

Features and Applications:

• • Side mounted single point load cell with aluminum alloy housing

  • Capacity range: 1kg, 5kg, 10kg, 20kg, 30kg per single point load cell

  • Compact design supports dynamic weighing and 200×200 mm platform

  • Three different dimensions available for flexible installation

  • Easy screw mounting on one side; load applied on the opposite side

  • Mainly used in food packaging machines, electronic scales, auto filling machines

  • Each single point load cell can be customized for specific OEM requirements

Specifications:

Dimension(MM):

                               Capacity : 4/5/6/8/10/20/30kg

                                                   Capacity : 1/2/3/5kg

                                 Capacity :10/15/20/30kg

Load Direction:

Wiring:

Load Cell Packaging and Shipping

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4.  Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
